Southern Utah University Student Center

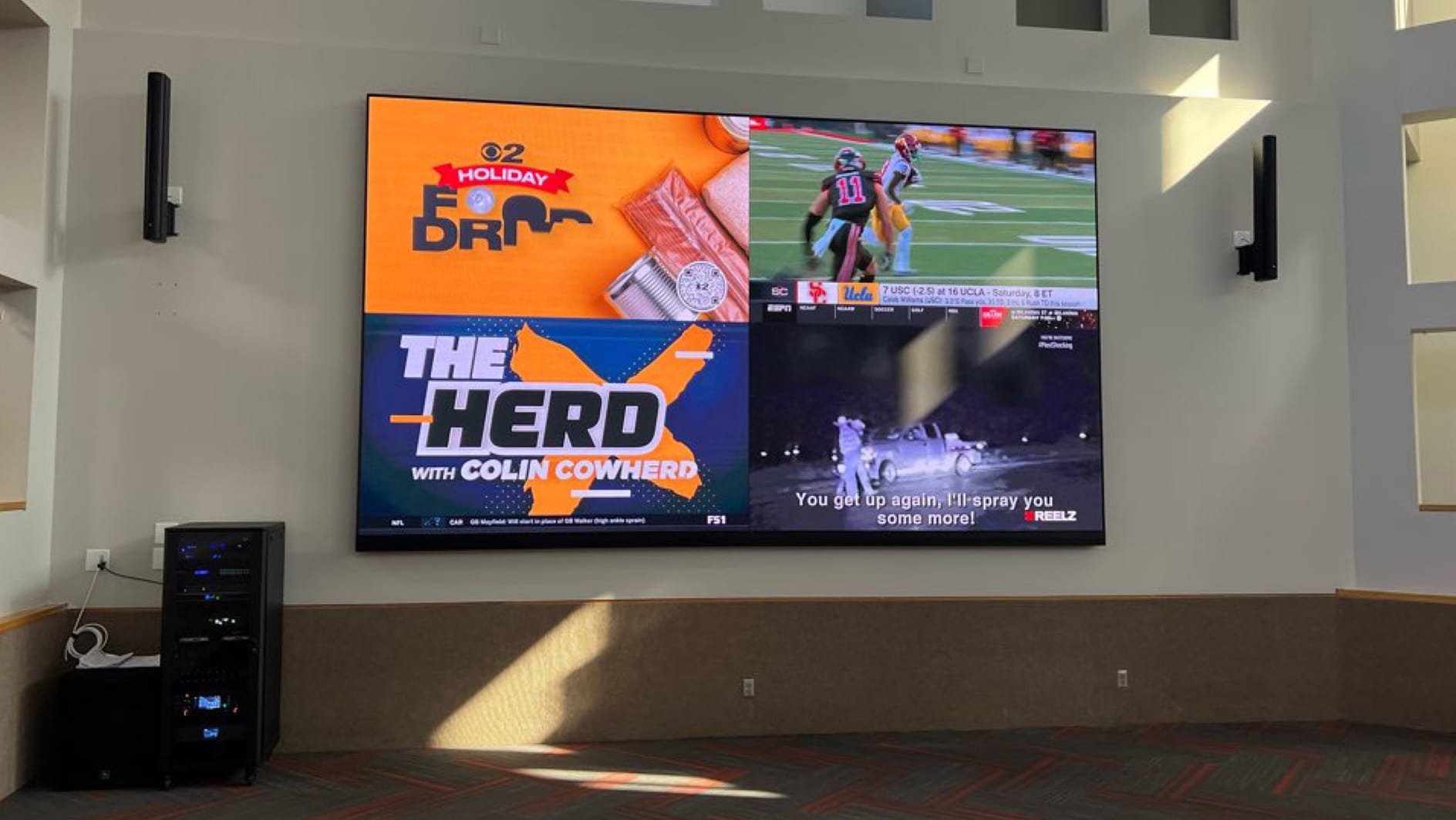

SUU wanted to install a 220” Direct View LED wall inside the Sharwan Smith Student Center lobby. They wanted the ability to configure up to 8 different video sources: 4 Brightsign players and 4 video signals. They wanted to show either picture in picture, or 4 video signals arranged in 2 x 2 – in any way with any of the 8 sources. They also wanted speakers and the ability to provide 2 audio outputs. All of this would be controlled using an Extron touchscreen.

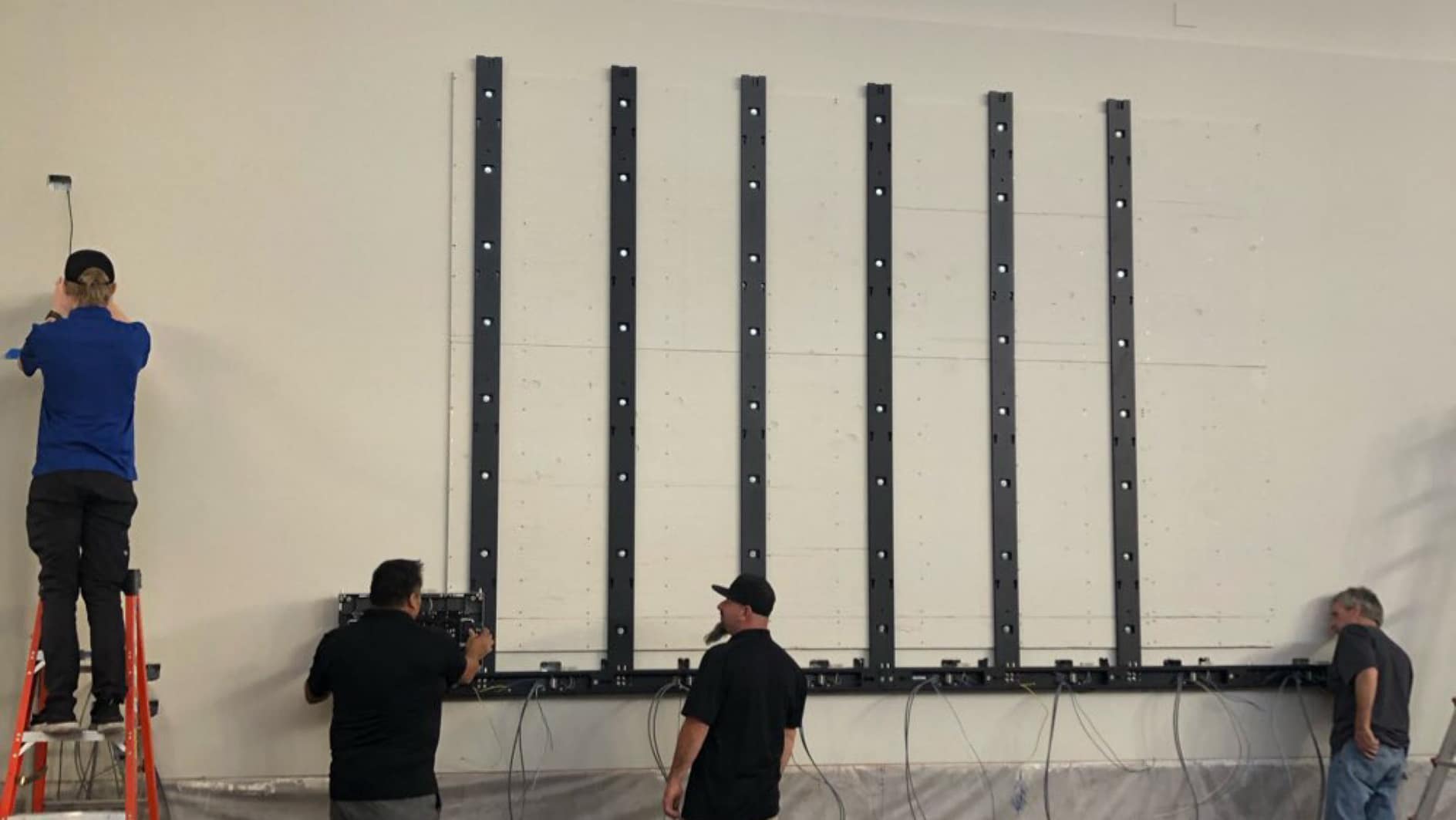

Wall re-framing was done by client with fire-rated plywood backing and paint provided by TVS Pro. Client provided 4 cable/satellite box signals. All other equipment was provided by, installed, and programmed by TVS Pro.

T.V.S.Pro Team
AV Consultant: Dan Austin
AV Project Manager: Dave Begay
Lead Installer: Alex Nisbet
Programmer: Zach Anderson

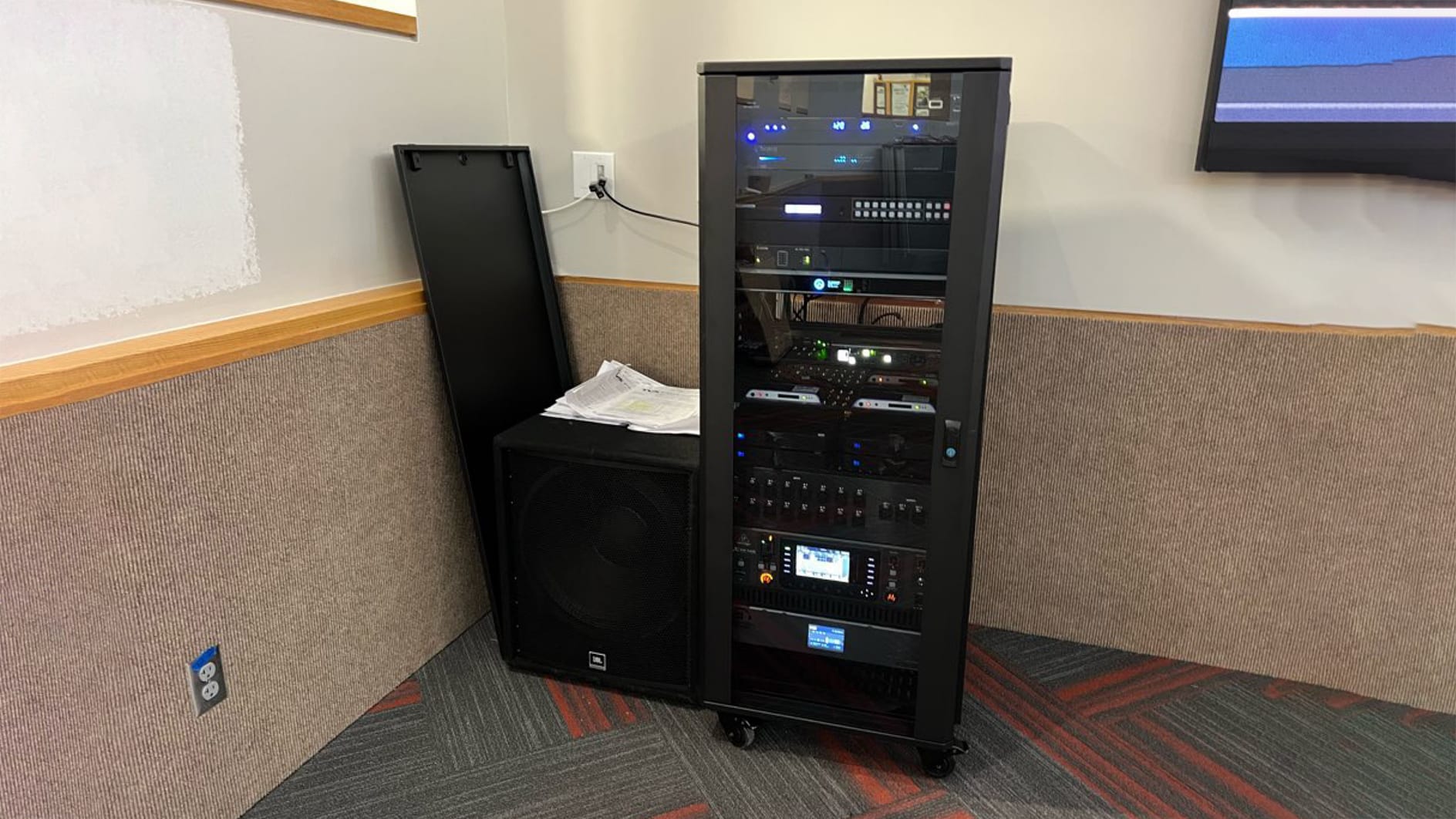

Key AV Equipment:

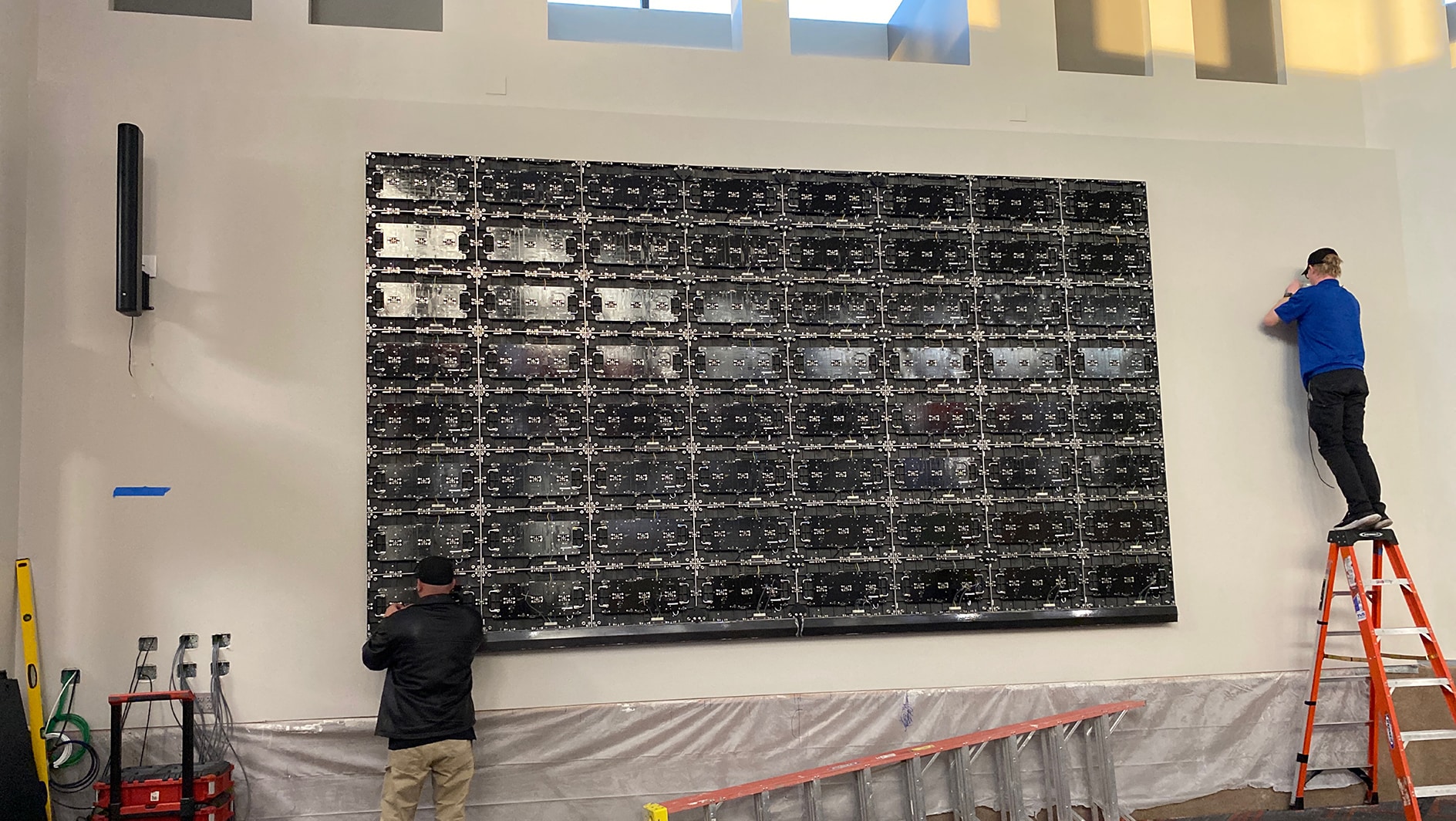

Sharp NEC Video Wall (16′ x 9′) with Novastar processor
4 Brightsign players
AVPro Edge Matrix Switcher
JBL Speakers
Extron Control

Watch the 1 minute installation time lapse!

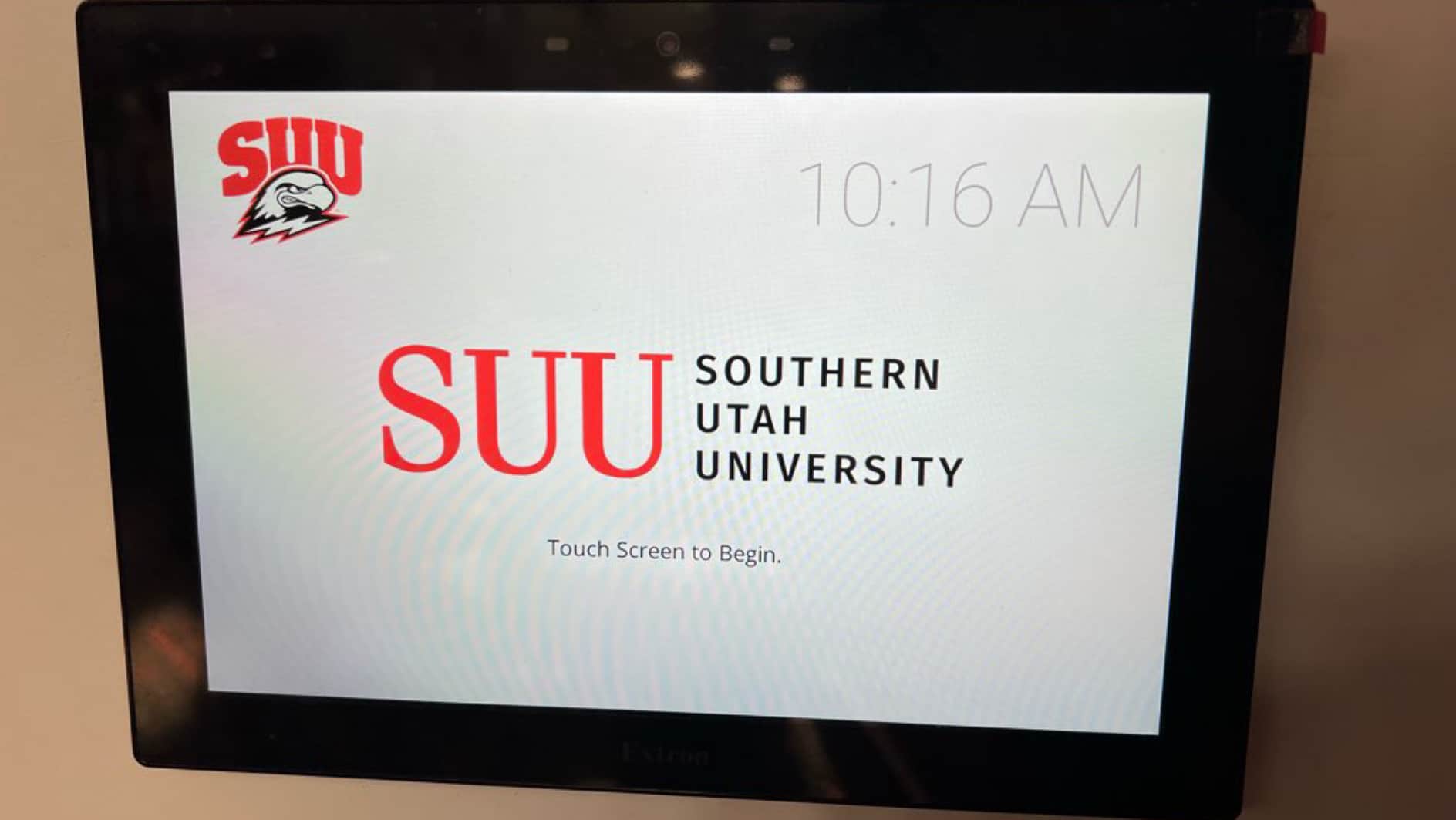

SUU Direct View Video Wall Touch Control Panel

Download PDF
